Drive Shaft
Drive Shaft provide connection between the pump side and P.T.O side. Saicad
produces drive shafts in different material grades.
Part No
 Description
 LMIN
 LMAX
 A(KEY)
pump side
 A(SPLINE)
pump side
 B (P.T.O )
side

951 90 104
 drive shaft
 560
 600
 B 7/8"
   F90
951 90 189
 drive shaft
 700
 740
 B 7/8"
   F115
951 90 256
 drive shaft
 560
 600
 B 1 1/4"
   F90
951 90 335
 drive shaft
 875
 915
 B 1 1/4"
   F100
951 90 359
 drive shaft
 700
 740
 B 1 1/4"
   F115
951 90 505
 drive shaft
 560
 600
   S 32 x 36
 F90
951 90 506
 drive shaft
 550
 590
   S 32x 36
 F97
951 90 615
 drive shaft
 700
 740
   S 32 x 36
 F97

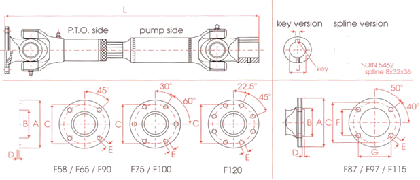

Dimensions of Drive Flanges( all dimensions in mm.)
Flange type
   F58
 F65
 F75
 F87
 F97
 F100
 F115
 F120

Outside dia
 A
 58
 65
 75
 87
 97
 100
 115
 120
Joint Face
 B
 30
 35
 42
 57.1
 47
 57
 69.8
 75
Pitch circle
dia
 C
 47
 52
 62
 69.9
 79.4
 84
 95.3
 75
Joint Face
depth
 D
 1.4
 1.6
 1.9
 1.5
 1.5
 2.3
 1.5
 2.3
Hole Dia
 E
 5.0
 6.0
 6.0
 7.9
 10.1
 8.0
 11.1
 8 or 10
No of Holes
   4
 4
 6
 4
 4
 6
 4
 4
Smallest
Hole dia
 F
 -
 -
 -
 44.85
 -50.8
   61.7
 -
Biggest Hole
dia
 G
 -
 -
 -
 53.45
 60.5-
 -
 72.2
 -
Notes:
Flanges F87, F97, F115 are according British and US
standards.
Other flanges are according DIN standards. Spline
bushes are standard for European pump shafts.

Other bushes are supplied in the sizes: Φ 7/8”(J) x 3/16”
(K) x 5/16”(K)
Flanges and bushes can be supplied on both sides.

LMIN = length with sliding rod fully in (solid length).
LMAX = maximum extended length

Drive  shaft partnumber code: drive shaft bush size x
flange size / no. spline bush holes - length.
E.g. drive shaft bush B'i8 x F115 / 4 - 700 = 145 90 189
Tel:  1-408-506-4097
Fax: 1-408-225-1869
E-mail:sales@saicad.net
SAICAD
This specification sheet is also available as per US
standards and units, at request.
